Creation of Cluster and Node

Create Cluster

1. To create the cluster, click the top-right, blue-highlighted "Create Cluster" button.

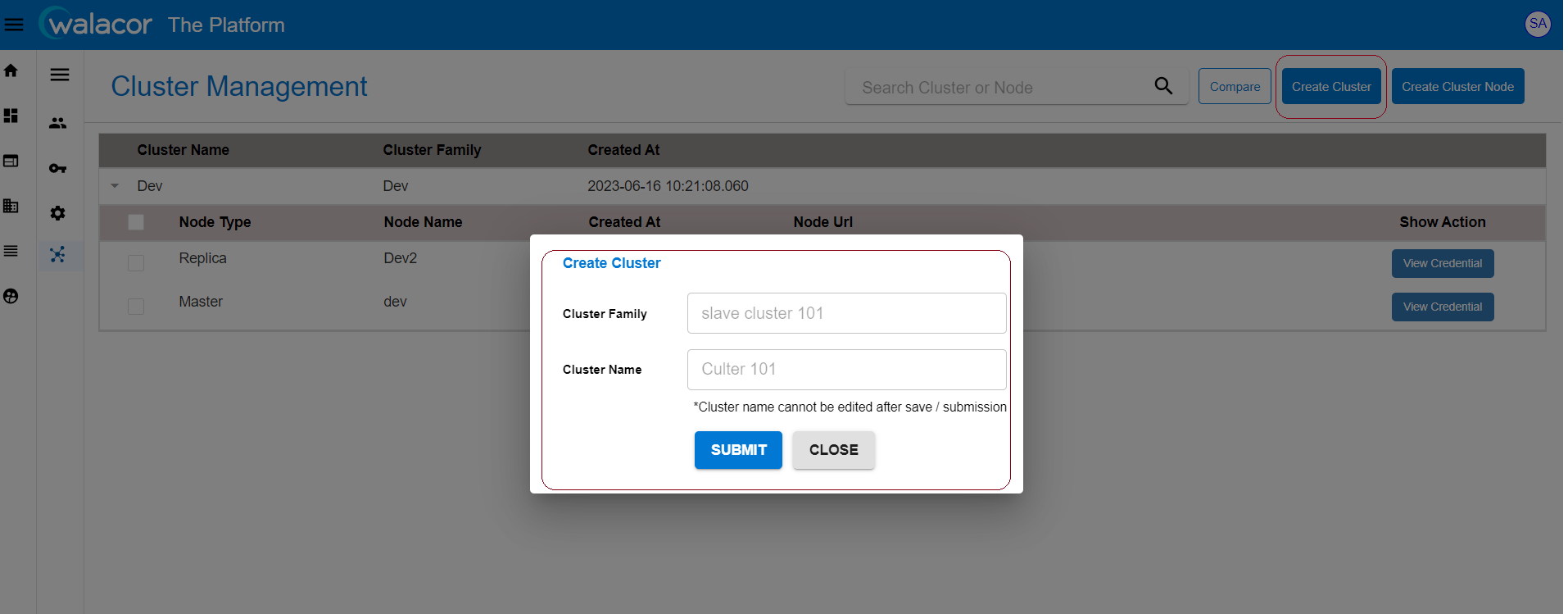

2. When prompted by a pop-up window, enter the specific Cluster Family Name and the cluster's intended name. Please select the Submit button.

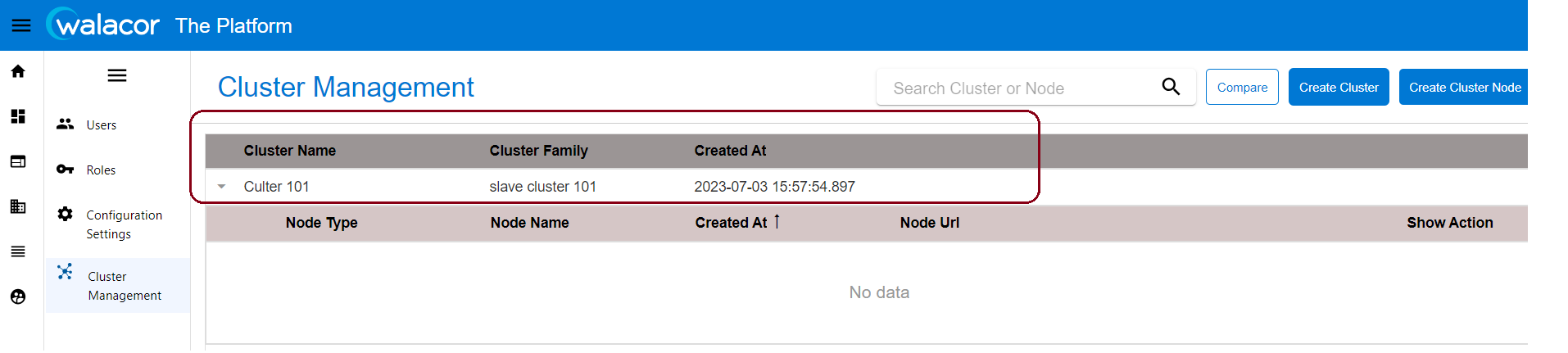

3. As soon as Submit button is clicked, a new Cluster will be established in the Cluster family. Now, On the cluster administration screen check all the details, which is indicated in the figure below.

Create Cluster Node

1. To create the cluster node, click the top-right, blue-highlighted "Create Cluster Node" button.

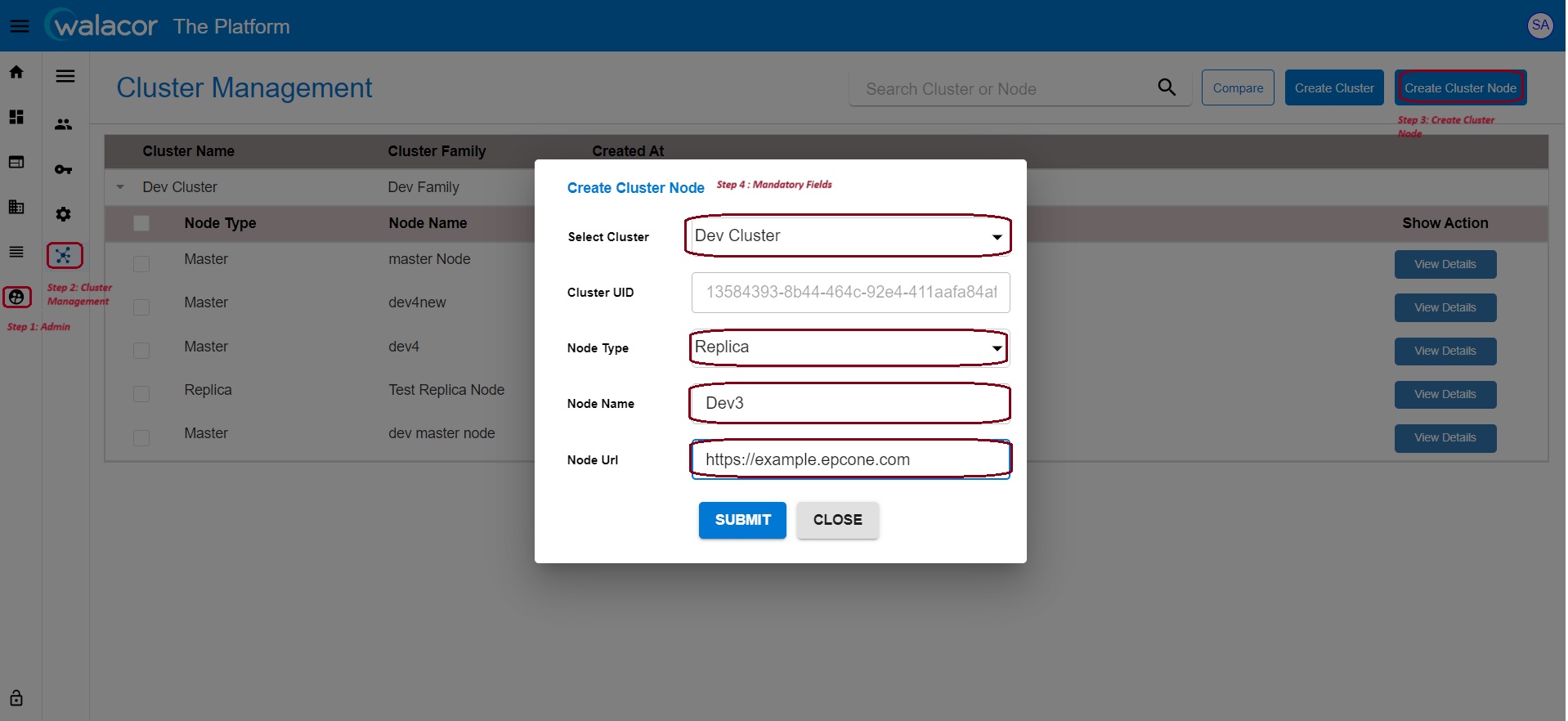

2. Whenever a pop-up window asks to choose:

   • The cluster name in which the cluster node is to be built from the drop-down menu.

   • Choose the Node Type (Master, Slave, or Replica) from the drop-down menu.

   • Type the name of the preferred Node here.
     The remaining fields will be unaltered.
     Click the Submit button .

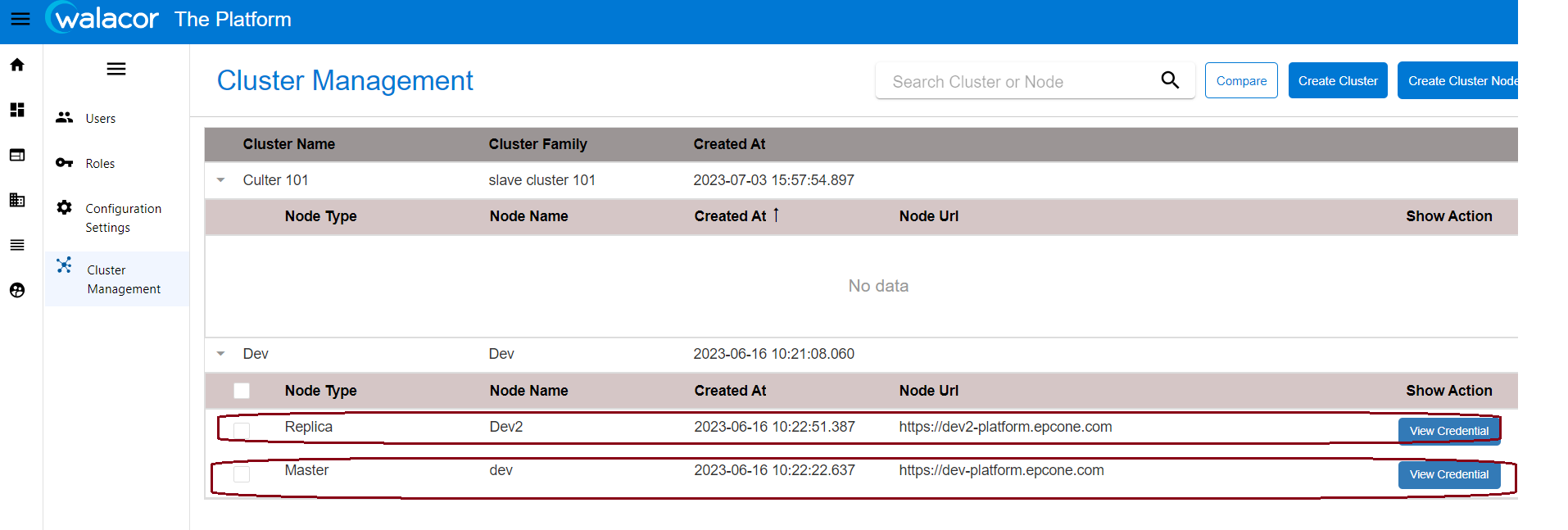

3. As soon as, Submit button is clicked, a new Cluster Node under the selected cluster is shown. Now, on the cluster administration screen check all the details, which is indicated in the figure below.

View Node Credentials

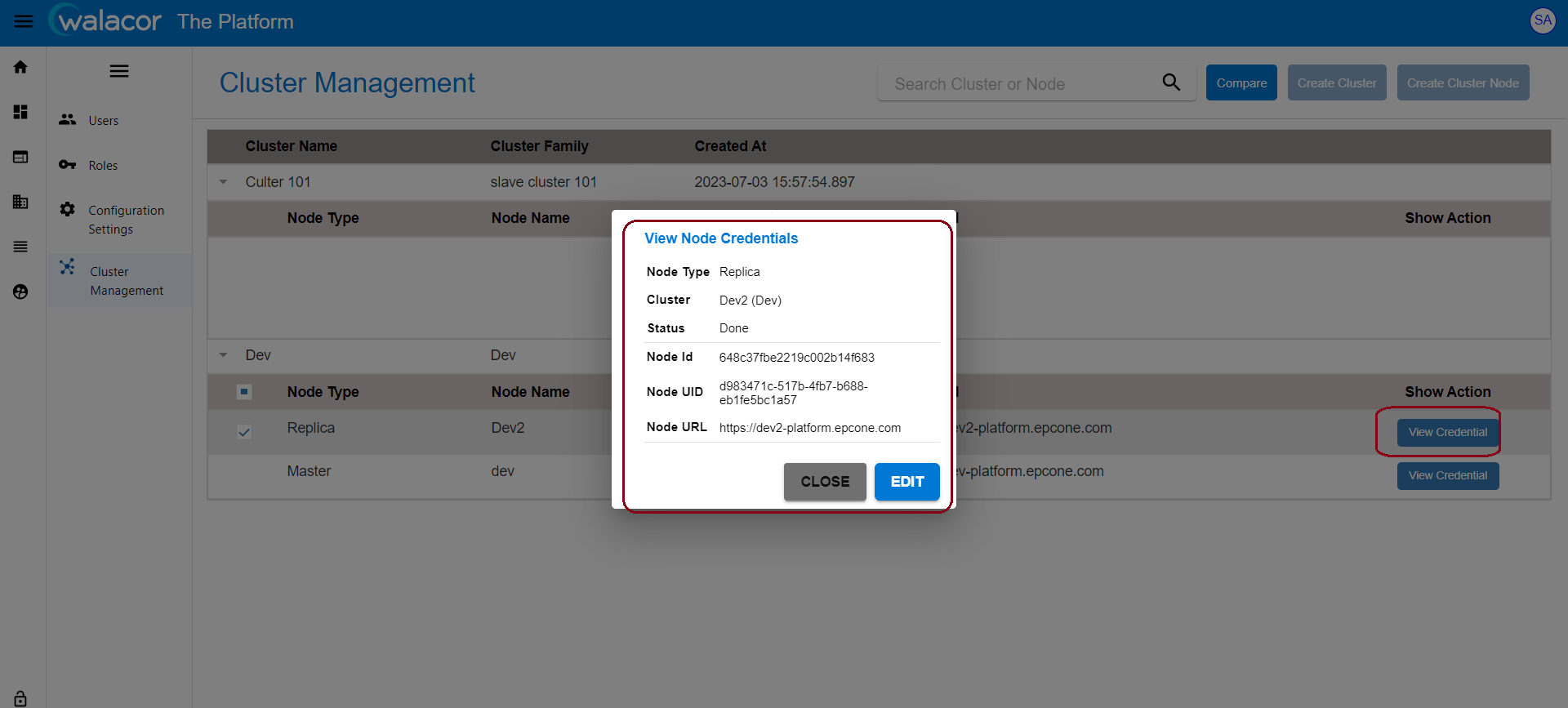

Click the "View Credential" button to view or modify the Node Credentials. The information such as Node Type, Cluster, Status, Node Id, Node UID, and Node URL will be displayed in a popup window. The EDIT button on the popup screen also gives the option to edit the key information.
