Schema Creation

New schema(s) can be generated whenever they are required for the business purpose.

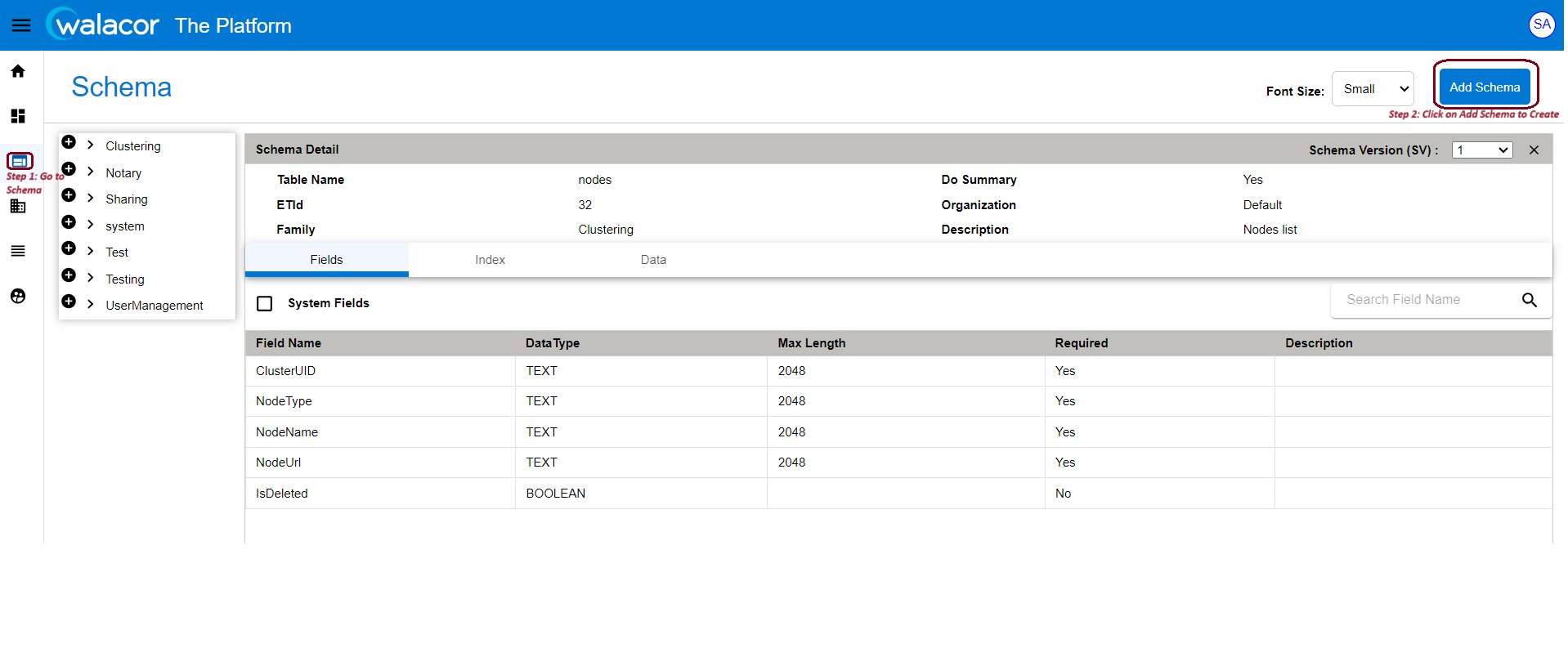

1. On the Home Page of the "The Platform" Application, Go to Schema by clicking on the Schema Icon _{(also shown in the image below)}. This will open the page where schema details can be viewed.

2. To create new Schema, Click on "Add Schema" button available on the top right hand side of the screen.

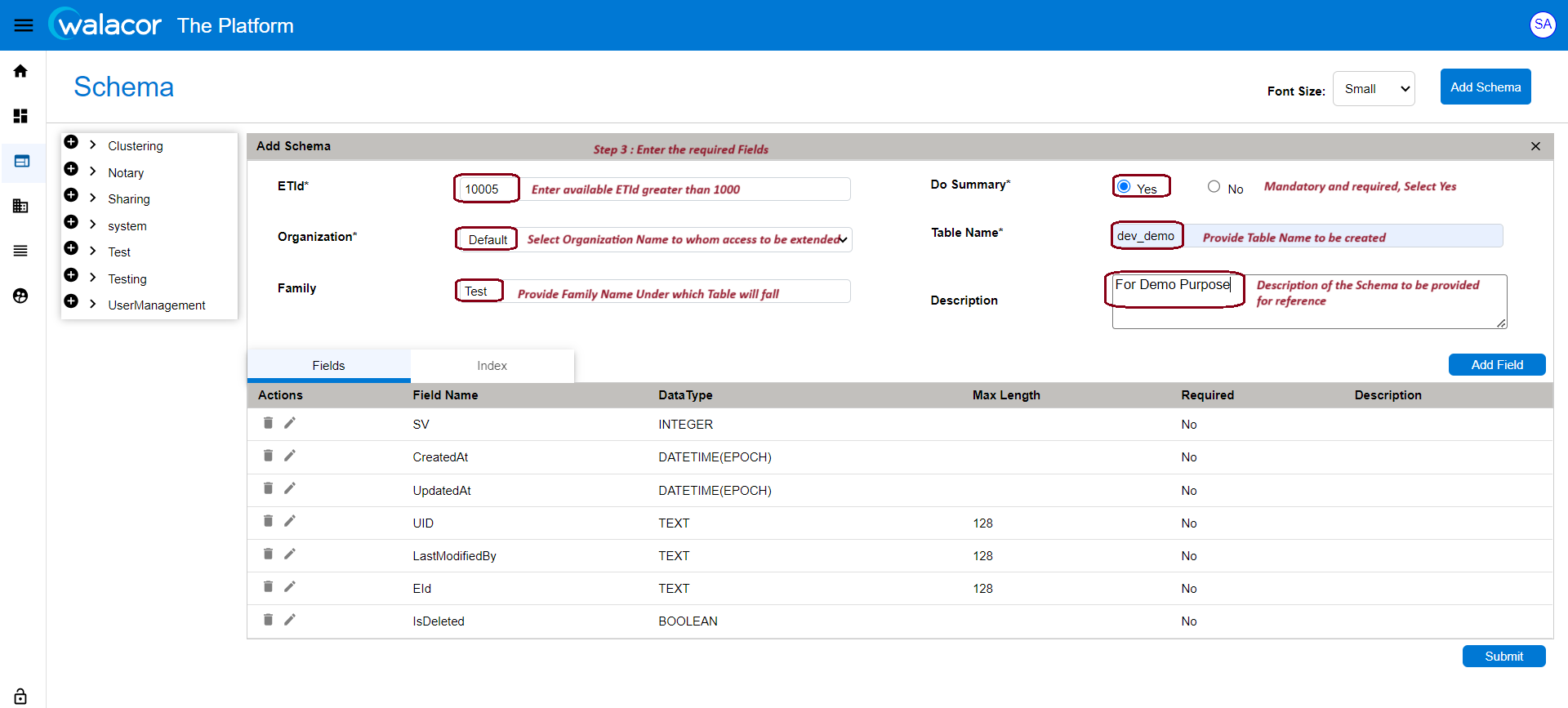

3. Pass in the values for the provided parameter. Please note ETId entered should be greater than 1000. Details about every show field is available in the introductory section of Schema.

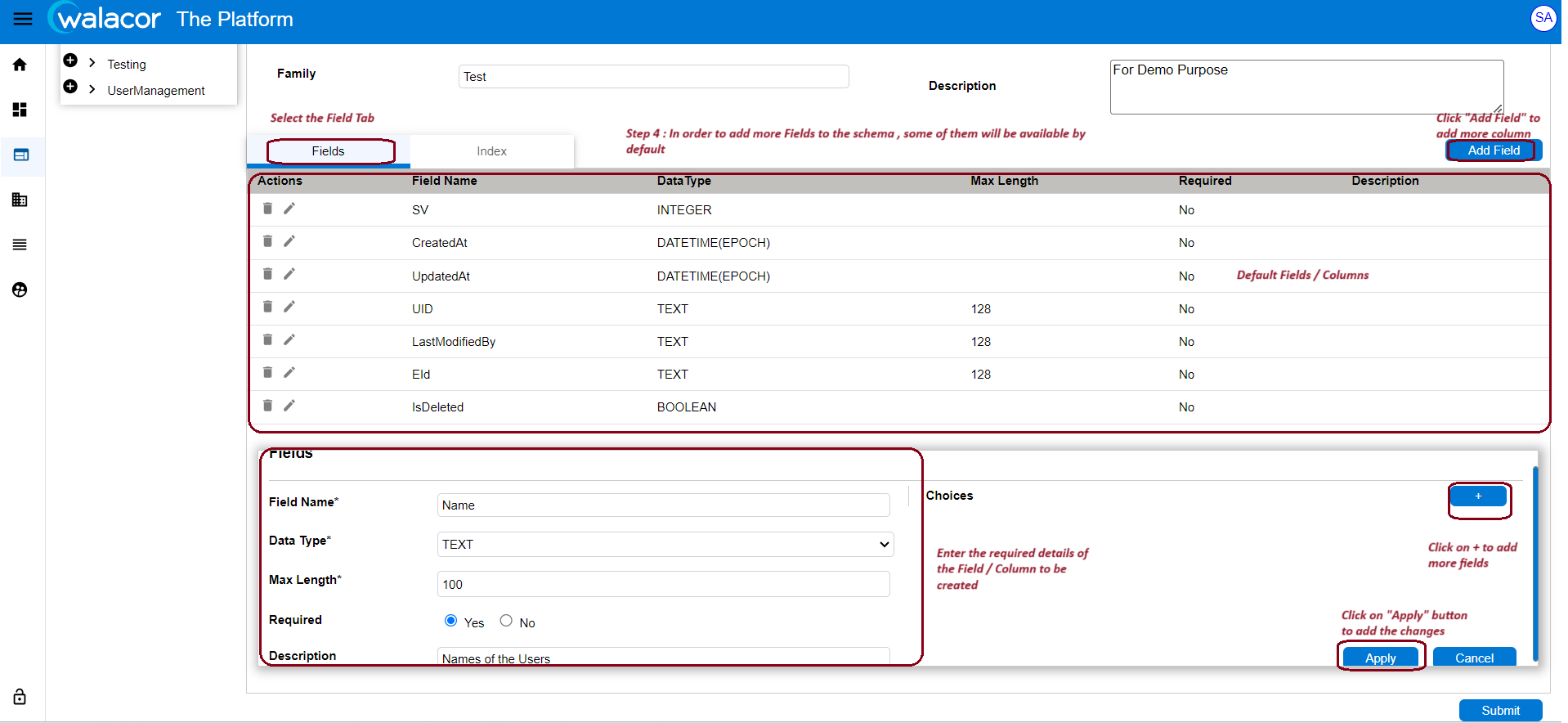

4. A schema's Field and Index are its key objects. Some fields, such as SV, CreatedAt, UpdatedAt, UID, LasModifiedBy, EId, and IsDeleted, will be produced automatically. Depending on the needs, create additional fields. Click the "Add Field" button that is located in the Centre, right-hand side of the schema to add extra fields. Click on the apply button to add the changes.

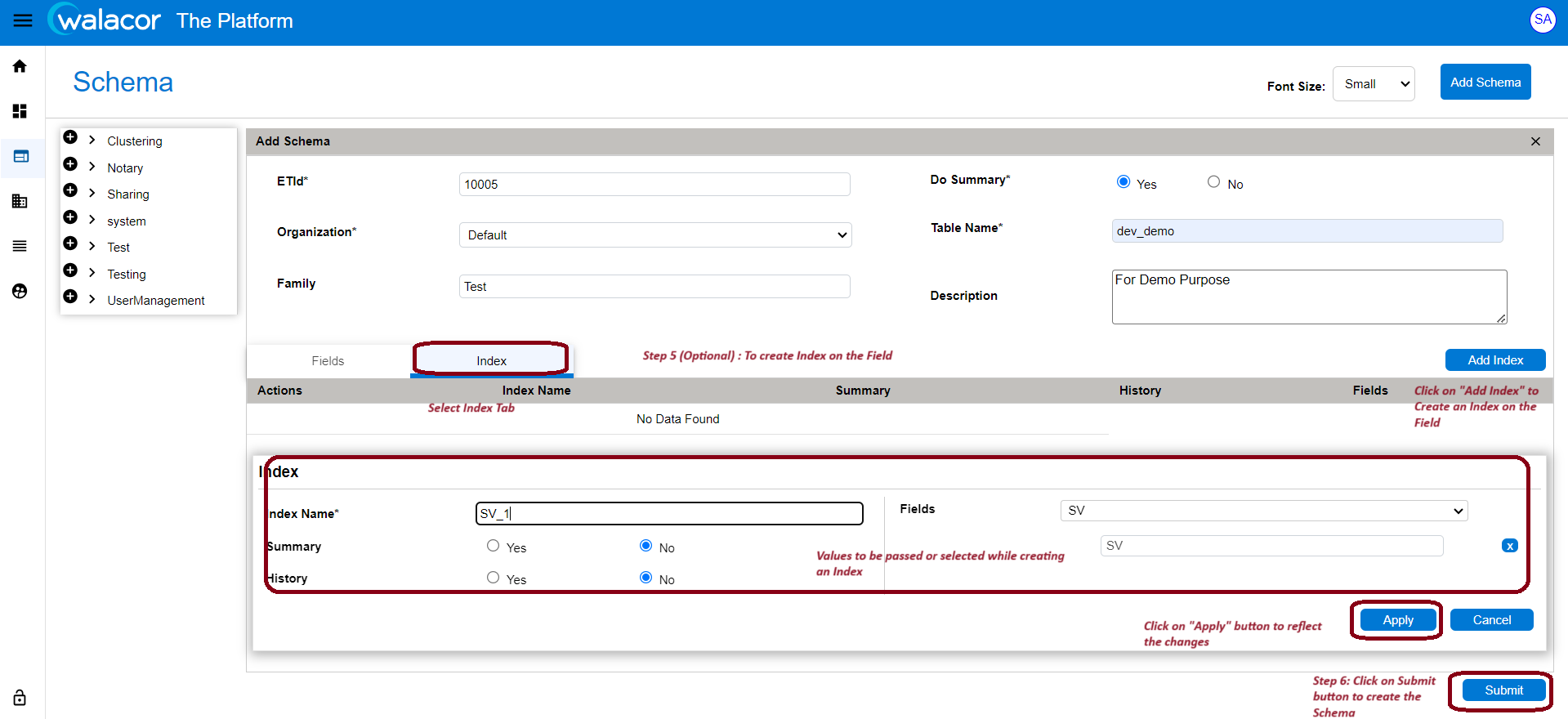

5. [Optional] Go to the Index Tab to add any Index to the Fields that are accessible. Provide the name of the Index and select the Field name on which Index to be created. Click on the apply button to add the changes.

Go over the entered information and, if everything looks good, click the Submit button to generate the schema. Version 1 of the schema will introduce new schema.
